Sensor resolution | 1945 × 1097 pixels |
Output format | Up to 1080 p 60 fps |
Minimum lighting | Day (color) 0,1 Lux” F1.6 |
Optical zoom | 30x (in air) / 10x (in water) |
Viewing horizontally | 59.2 (W)° ~2.0°(T) |
Viewing vertically | 33.8 (W)° ~1.15°(T) |
Focus min working distance | 0 m (wide) to 1.5 m (tele) |
Focus / Iris | Yes, auto and manual |
Pan // Tilt | +/- 180° / +/- 90° |
Speed | Variable speed Pan/Til (up to 5 sec full revolution) |
Pan-Tilt resolution | 0.02°/step (both pan and tilt) |
Lamps | 4 LED following P&T |
LED intensity | 650 Lm |
Dimensions | ∅ Diameter 170mm, Height 210mm |
Weight | 3kg |
Power supply | 24 VDC, 24W |
Communication | RS-485 Pelco D |
Video output | HD-SDI (EX-SDI, TVI, CVBS as option) |
IP class | IP 68, over 30m depth |
Operating temp | +0 °C to +40 °C |
Humidity | 0 – 100% RH |
Type of protection | Radiation tolerant design |
Dose | dose rate (Co60) | > 40 kRad (400 Gray) | > 10 kRad/h (100 Gray/h) |
Internal sensors | Internal radiation damage sensor, temperature sensor |
Cable mechanical strength | Yes |
Dome material composition | Optical clear PC |
Base composition | Stainless steel |
Radiation Tolerant Cameras
RADCAM® Freya
A compact, radiation tolerant dome camera for nuclear environments
- Low Total Cost Ownership with minimal investment
- Easy to deploy/install with highly reduced FME risks
- Simplify modern CCTV architectures (no CCU)
- Replace/upgrade obsolete cameras
- Unified solution and Synergies for integrators and site wide NPP operations
Product overview

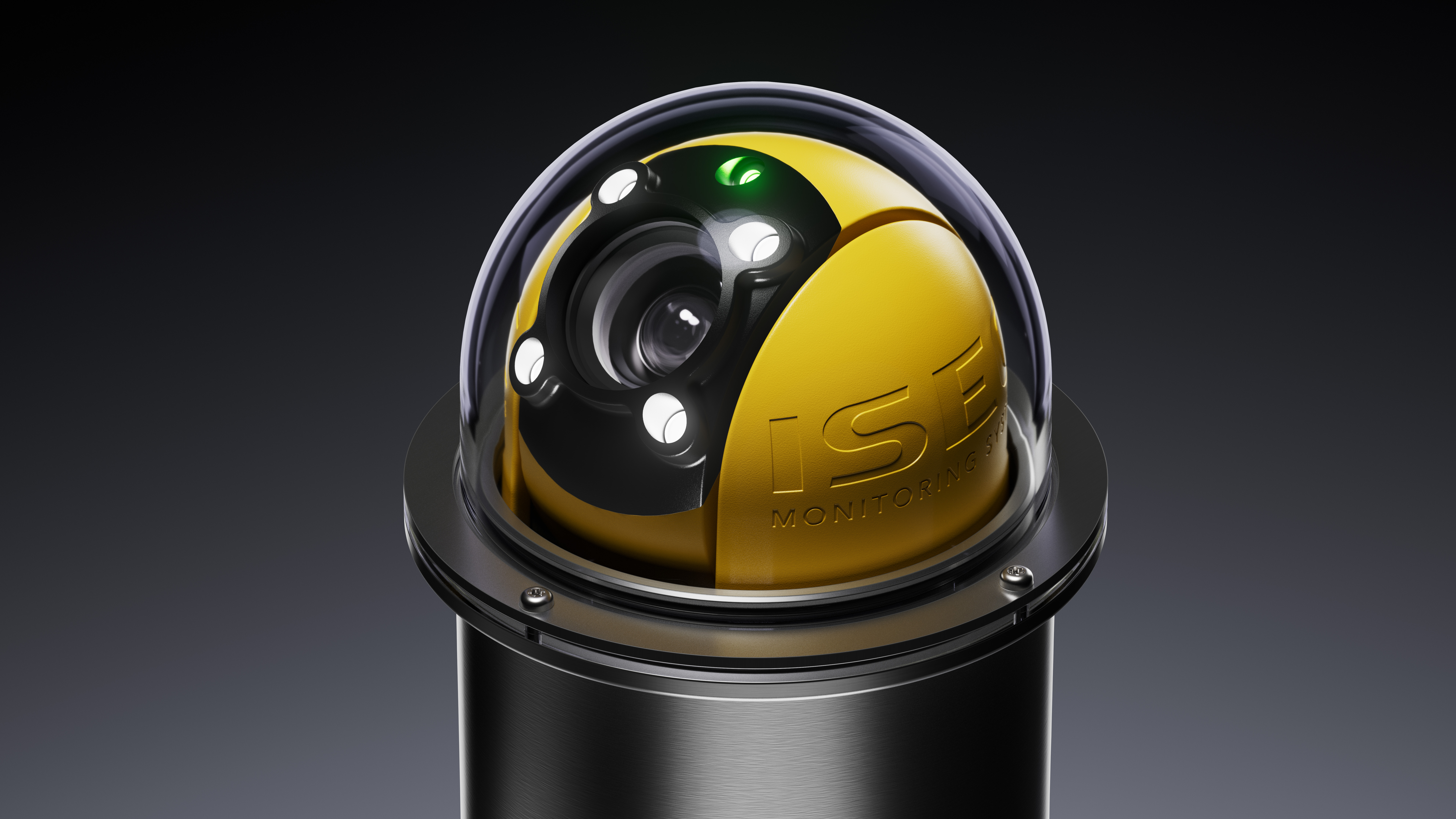

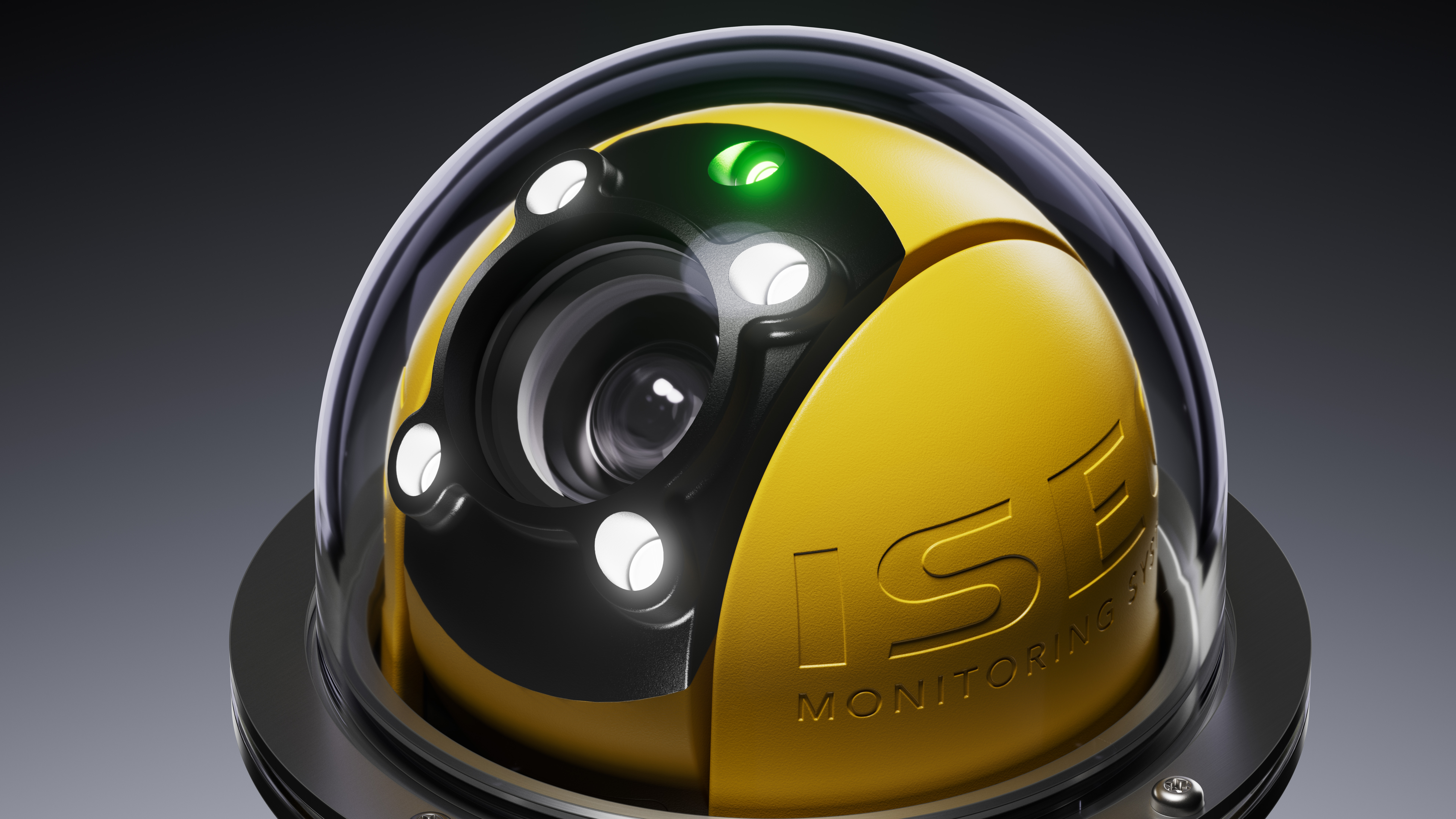

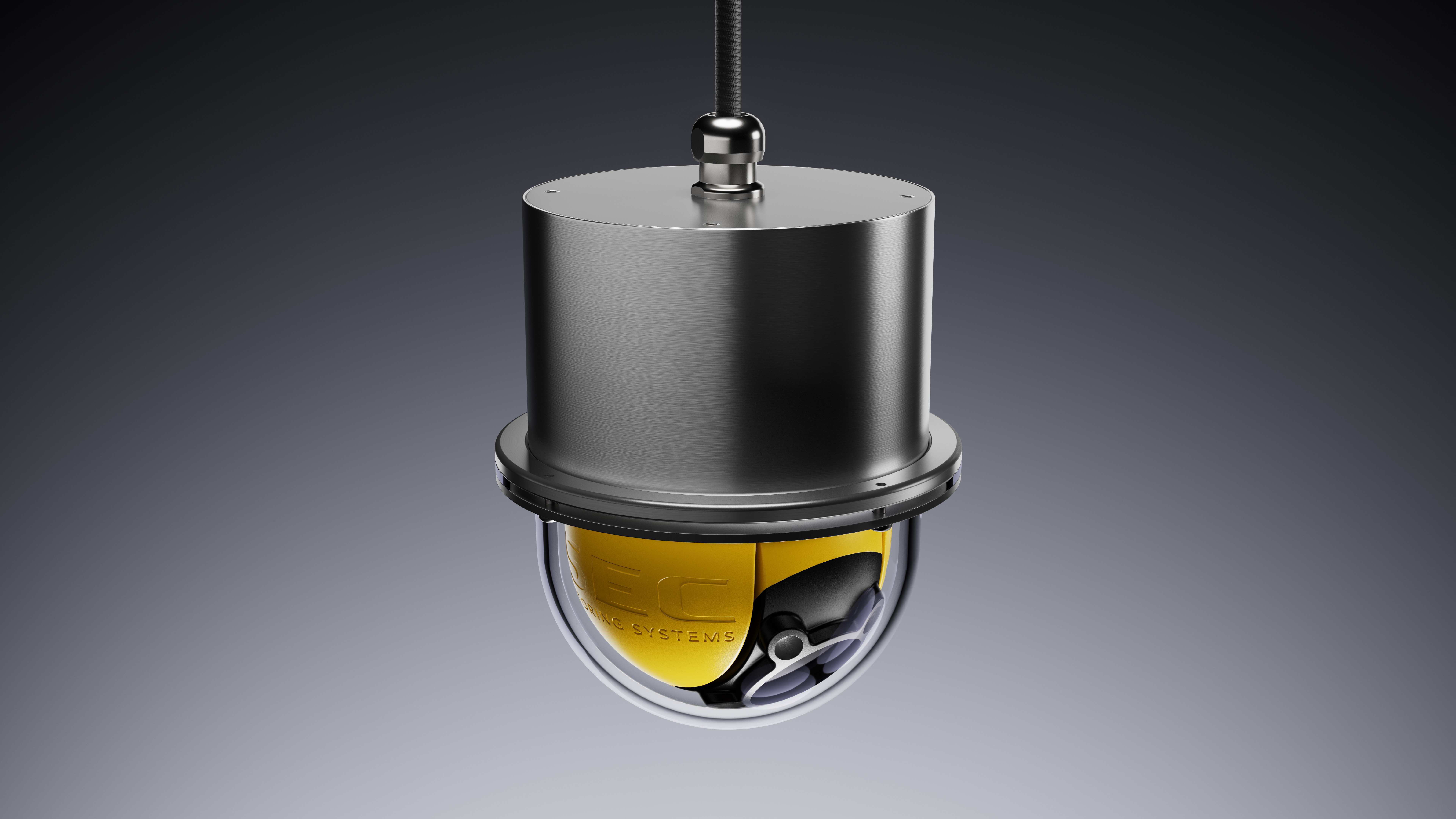

The new RADCAM Freya has been developed to meet the needs
of a compact, lightweight and HD camera for any nuclear facility. Usable in air or underwater, the RADCAM Freya is radiation tolerant up to 40,000 Rad (400 Gy) and easy cleanable from contamination.
Perfect for new inspection & surveillance systems, this RADCAM Freya will also be your best alternative to replace standard off the shelf cameras and update the facility with high-definition surveillance cameras, without modifying cables.
Key features
-
Low/Mid rad-tolerance HD PTZ camera with LED lights
-
Highly cost competitive Nuclear Freya camera
-
Veryeasytodecontaminate&maintain
-
Very compact, light weight and no ext. moving parts
-
Suitable for any CCTV infrastructure (analog or digital)
-
Suitable for all nuclear market segments (active operation/back-end, In-air/Underwater)
